Our PANTOhealth Simulation Panel is an advanced online platform
that provides users with high accessibility and interactivity,
making it an essential tool for engineers and designers.
The PANTOhealth Simulation Panel uses an analytical approach, delivering accurate
and reliable results without relying on FDM or FEM methods. Our simulation tool offers
critical insights into both static and dynamic interactions for comprehensive analysis,
enhancing the performance of your systems.

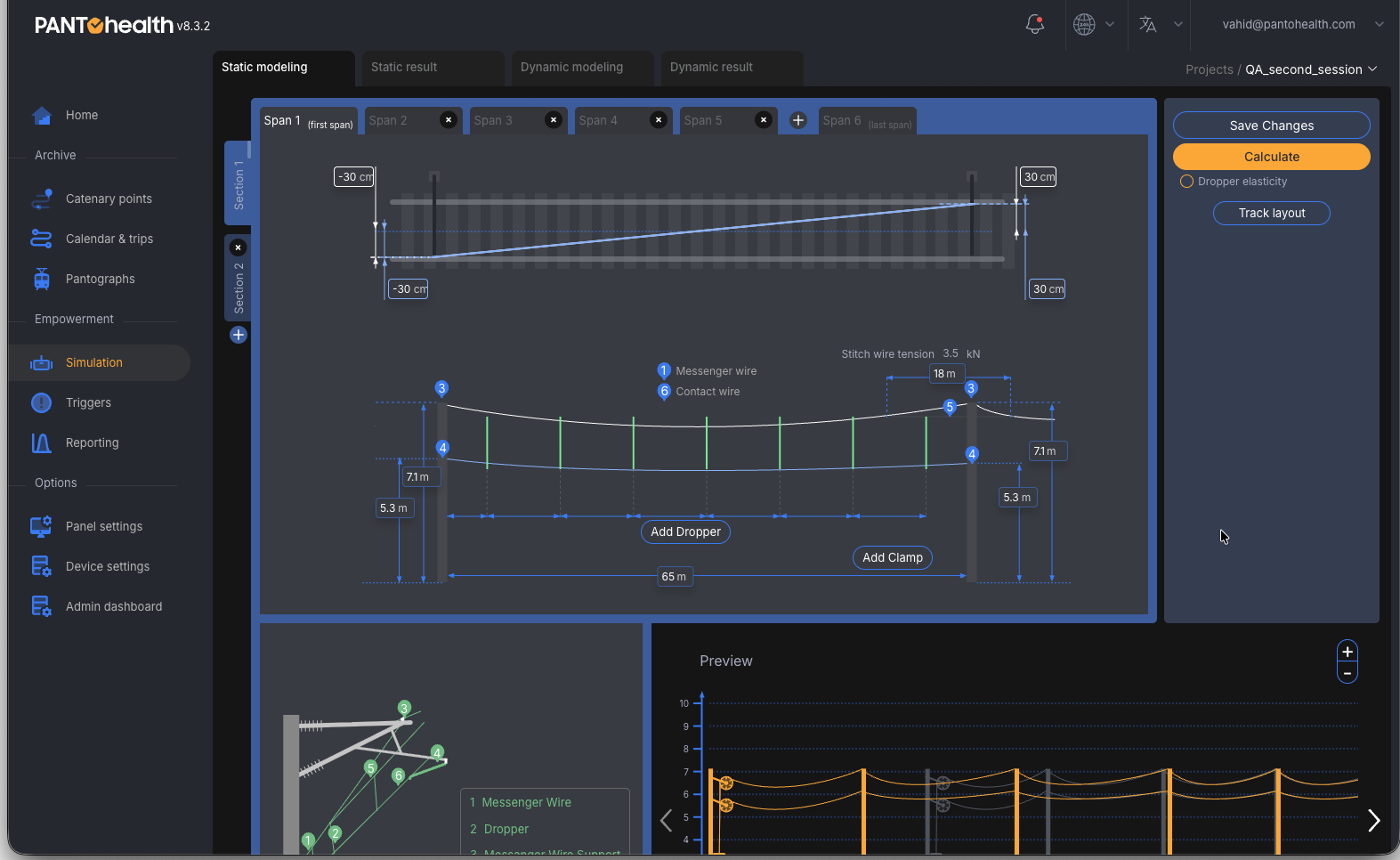

Inputs
Geometry of the overhead lines
Mechanical features of the overhead line
Technical information, including the dynamic behavior of droppers
A comprehensive report detailing the results

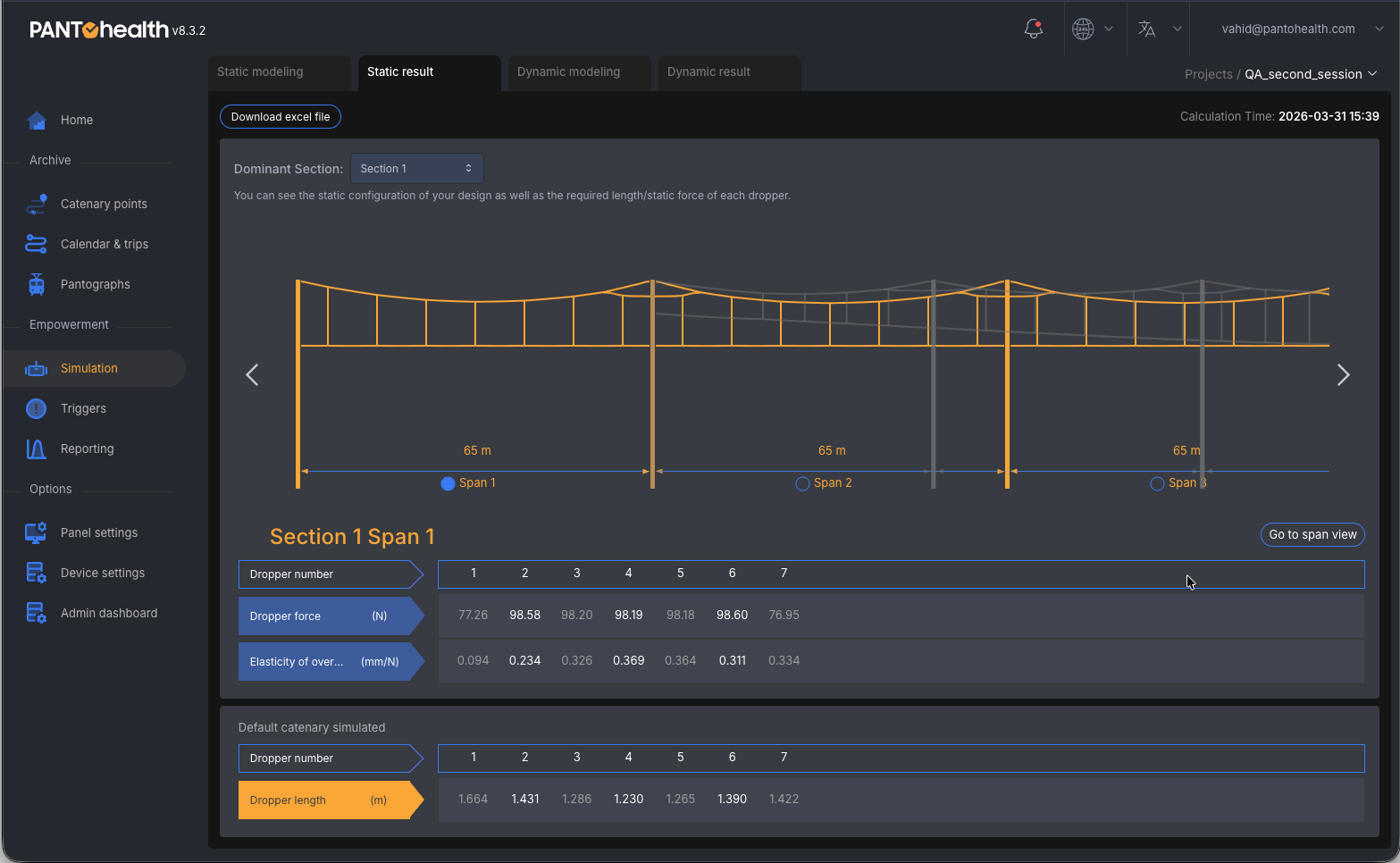

Outputs
Dropper length
Static force
Elasticity
Comprehensive report

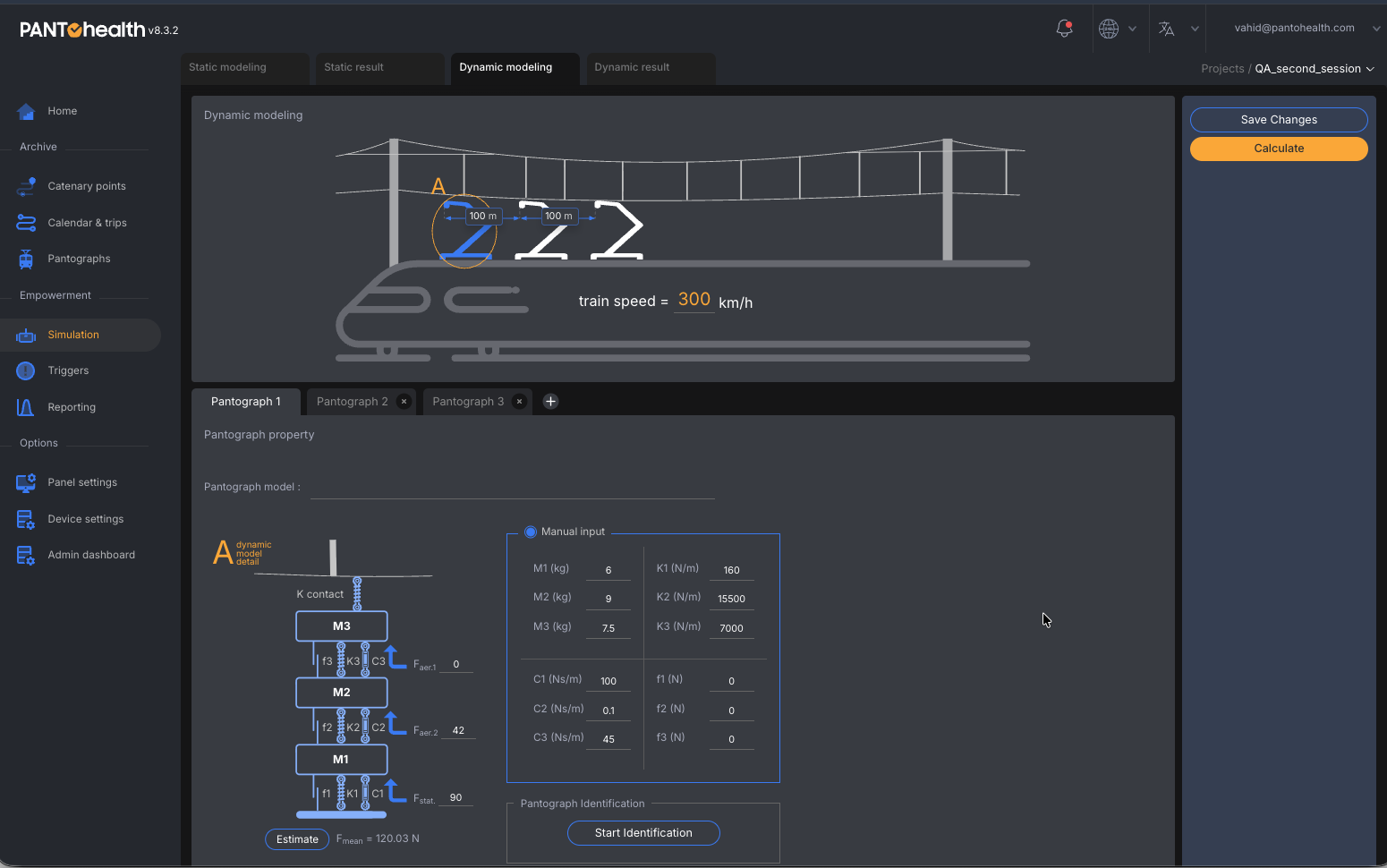

Inputs
Pantograph configurations and numbers
Pantograph mass, stiffness, and damping characteristics
Uplift force
Catenary static configuration

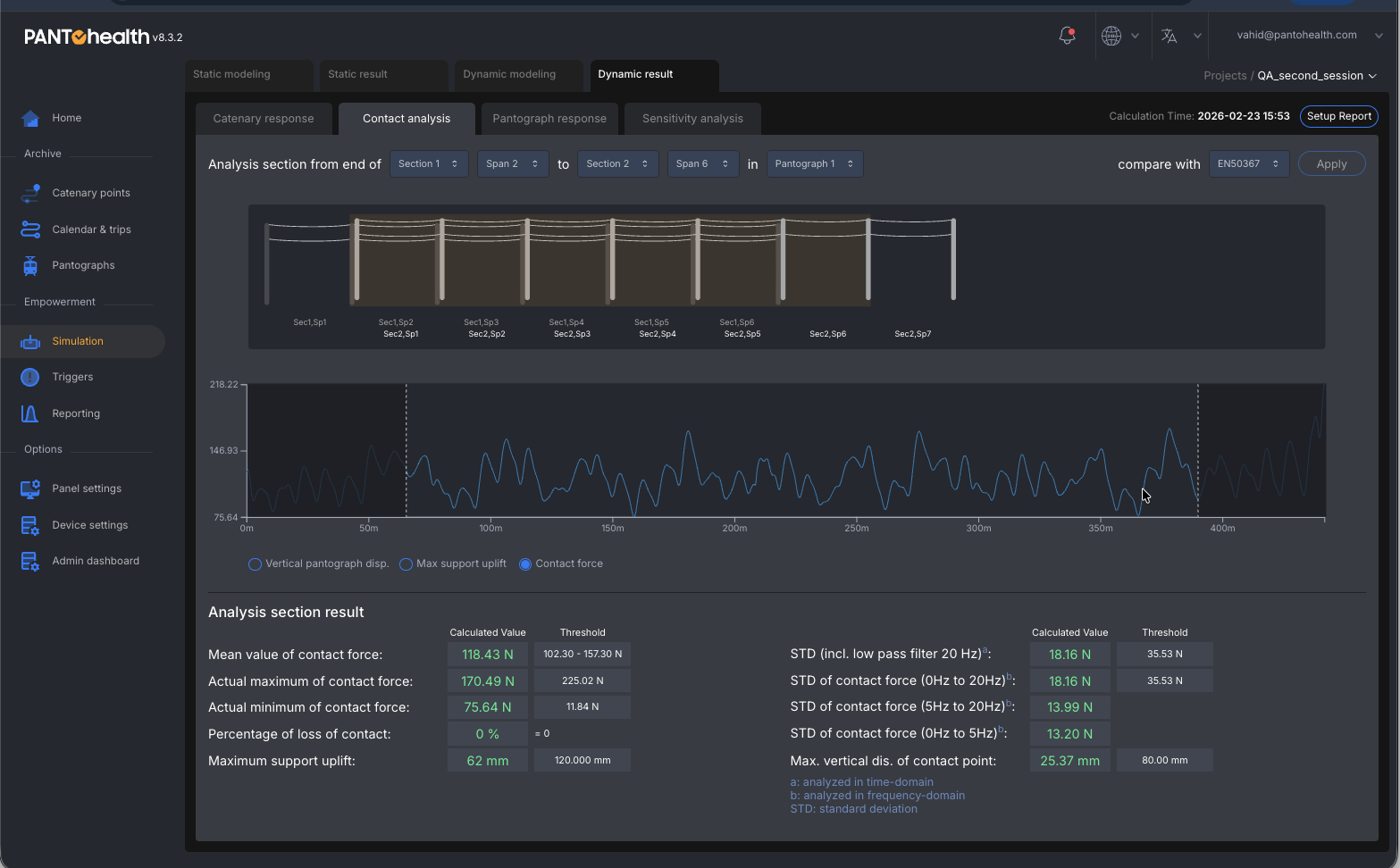

Outputs
The contact force between the pantograph and the catenary
Maximum uplift of the contact wire at masts
Range of vertical movement of the pantograph
Compliance evaluation with international standards
If you don’t need extensive data for simulations, no worries—all these
features are available in a single, web-based panel designed just for
you. And if you already have a collection of data and want to simulate
new pantograph and overhead line designs, our panel is perfect. It’s
user-friendly, easy to navigate, and comprehensive, helping you
effortlessly unlock the full potential of your data to enhance your
design and maintenance processes.
Improving pantographs’ design and testing
for Bergamo
Minelge partnered with PANTOhealth to enhance its pantograph
design and testing processes.
By implementing advanced simulation tools and custom in-house
testing, Minelge reduced costs, accelerated development, and gained
greater control over product innovation, allowing for faster adaptation
to market demands and maintaining a competitive edge.
Join our workshop toexplore key components, challenges, and best practices
in Overhead Line Systems (OHLS) maintenance.
